Y-Series

Y-Series

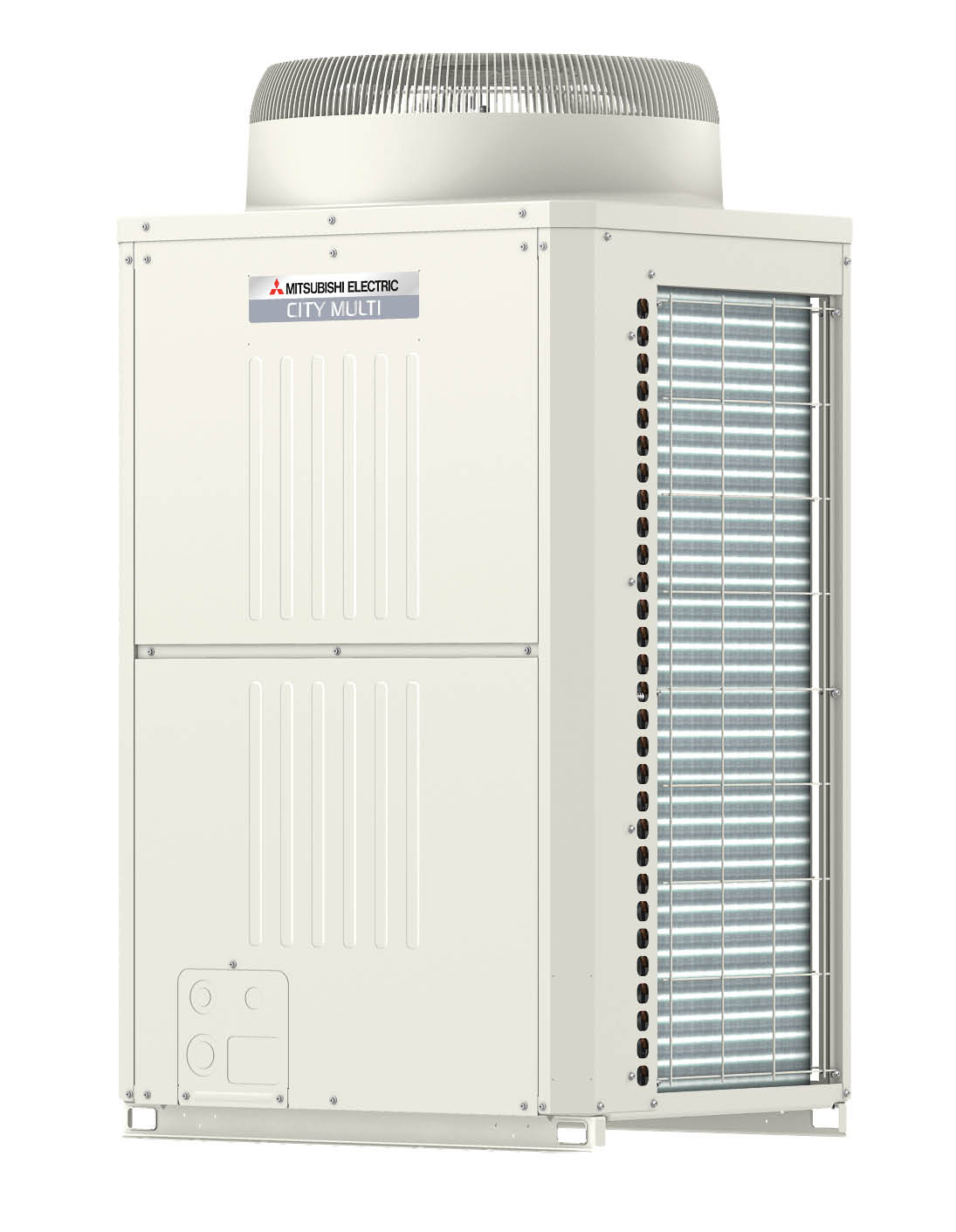

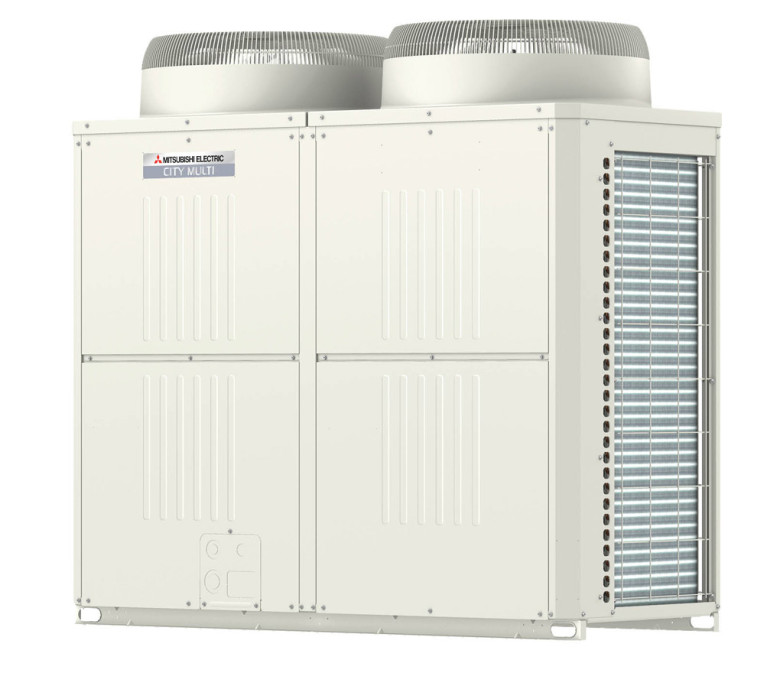

Y-Series outdoor units are flexible enough to cool or heat up to 50 individual zones, maximizing building design options. The modular unit design features a small footprint and low operating sound.

Cools or heats up to 50 individual zones
Available sizes: 6-30 tons
Available in both 208/230V and 460V
Maximum operating sound: 65 dB(A) for 30 ton condenser
Cooling to -10° F with optional low ambient kit
Uses T-branches and headers to provide piping design flexibility
INVERTER-driven compressor for outstanding performance and optimized energy usage
Maximum pipe length: 3,280 feet
Connects to CITY MULTI indoor units; controlled via CITY MULTI Controls Network (CMCN)
External finish: Pre-coated galvanized-steel with thermoset polyester-resin

Get in Touch with Sales

To inquire about this item get in touch at 786-621-8250 or send a message.

Product Overview

The Y-Series is a Variable Refrigerant Flow (VRF) system providing flexibility in zoning with the ability to connect up to 50 indoor units

to one outdoor unit. INVERTER® technology, intelligent controls, efficient indoor unit design and long line lengths provide energy

efficiency and installation capabilities unparalleled with conventional equipment.

• INVERTER-driven compressor

• Tonnage range: 6-30 tons

• Voltage: 208V / 230V (T) and 460V (Y)

• Cools or heats up to 50 individual zones

• Maximum operating sound: 58 – 65 dB(A)

• Cooling to -10°F with optional low ambient kit

•Improved heating start up

•Extended temperature range

•Extended pipe length:

— 1st branch to farthest indoor unit – up to 295′

— Vertical height between indoor units – up to 98′
