Mini split AC 60 Hz
| Model | UNO09AC230V1AS-G6 | UNO12AC230V1AS-G6 | UNO18AC230V1AS-G6 | UNO24AC230V1AS-G6 | |
|---|---|---|---|---|---|
| Cooling Capacity | BTU/h | 9000 | 11000 | 17300 | 22000 |
| Efficiency | Fixed Speed - Standard Efficiency | Fixed Speed - Standard Efficiency | Fixed Speed - Standard Efficiency | Fixed Speed - Standard Efficiency | |
| System Type | Cooling Only | Cooling Only | Cooling Only | Cooling Only | |
| Power Supply | V/Ph/Hz | 208-230V/1/ 60Hz | 208-230V/1/ 60Hz | 208-230V/1/ 60Hz | 208-230V/1/ 60Hz |
| Rated Current (A) Cooling | Amps | 6.4 | 7 | 12.4 | 15.8 |
| Model | UNO09AC230V1AI-G6 | UNO12AC230V1AI-G6 | UNO18AC230V1AI-G6 | UNO24AC230V1AI-G6 | |
| Air Flow - T/H/M/L | CFM | 235/206/182/165 | 324/294/247/206 | 500/459/383/324 | 500/459/383/324 |
| Sound Pressure Level - T/H/M/L | db (A) | 41/37/35/32 | 41/37/35/32 | 49/45/41/37 | 45/42/39/35 |
| Unit Dimension (WxHxD) | inches | 29 x 10 x 7 | 31 1/8 x 11 x 7 | 33 1/4 x 11 x 7 | 37 x 11 13/16 x 8 |
| Package Dimension (WxHxD) | inches | 31 1/8 x 13 x 10 | 34 3/8 x 14 x 10 | 36 x 14 x 10 | 40 x 15 x 11 5/16 |
| Net / Gross Weight | lb | 18 / 24 | 20 / 27 | 22 / 29 | 29 / 38 |

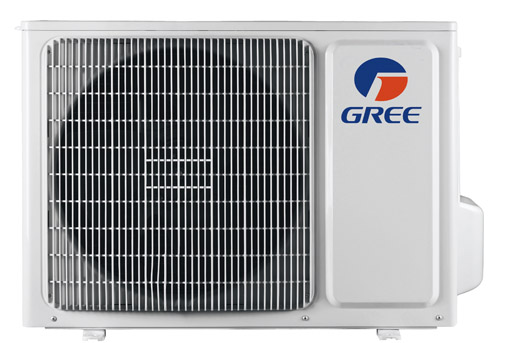

| Model | UNO09AC230V1AO-G6 | UNO12AC230V1AO-G6 | UNO18AC230V1AO-G6 | UNO24AC230V1AO-G6 | |
| Compressor Type | Rotary Compressor | Rotary Compressor | Rotary Compressor | Rotary Compressor | |
| Sound Pressure Level | db (A) | 50 | 52 | 56 | 58 |
| Unit Dimension (WxHxD) | inches | 29 x 17 x 12 1 /5 | 31 x 21 11/16 x 12 1/2 | 33 3/8 x 21 5/16 x 12 5/8 | 36 x 27 x 15 |
| Package Dimension (WxHxD) | inches | 30 1/4 x 19 x 13 8 /9 | 32 1/2 x 22 7/8 x 14 | 34 5/8 x 23 x 14 3/16 | 39 1/4 x 29 x 17 |
| Net / Gross Weight | lb | 56 / 61 | 66 / 77 | 91 / 102 | 102 / 110 |
| Refrigerant / Charge | oz. | R-410 / 18 | R-410 / 22 | R-410 / 35.3 | R-410 / 42 |
| Aplication Area | sf | 130~195 | 162~237 | 226~334 | 291~453 |
| Line Set Size (Liquid - Suction) | inches | 1/4" - 3/8" | 1/4" - 1/2" | 1/4" - 1/2" | 1/4" - 1/2" |
| Pre-Charge (Ft.) | Feet | 10 | 10 | 10 | 10 |
| Max. Line Run (Ft.) | Feet | 49 | 66 | 66 | 82 |
| Max. Elevation (Ft.) | Feet | 33 | 33 | 33 | 33 |
| MCA | Amps | 8 | 8 | 12 | 17 |
| MOCP | Amps | 10 | 10 | 16 | 25 |
| Wire Size / # Wires | AWG18/3 | AWG18/3 | AWG14/3 | AWG12/4 |
