Terra World Class Performance

Terra Logo

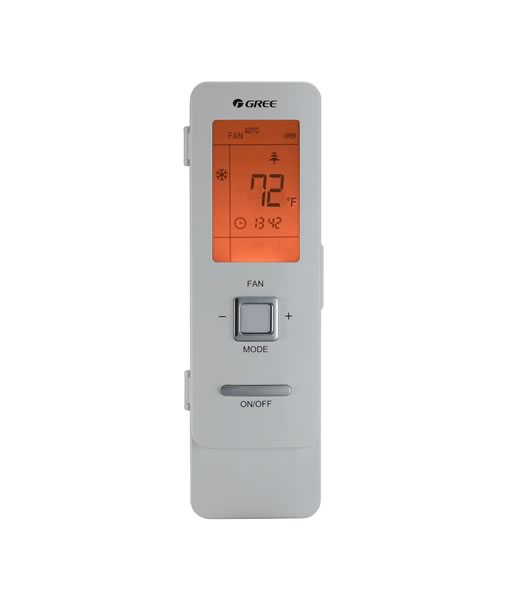

Feature-rich with advanced components, the TERRA is our highest-efficiency model, specially designed to save energy and protect the environment. Through our commitment to smart ecological design, the TERRA’s unrivalled technology packs an energy-efficient punch that is guaranteed to resonate well in any atmosphere. This sleek heating and cooling device is a ductless wall mount heat pump system, equipped with the latest G10 inverter technology and an intelligent energy saving function – up to 27 SEER, engineered to reduce up to 65% of your energy consumption. Minimal and contemporary in appearance, the TERRA easily blends in with its surroundings and utilises a highly intuitive wireless remote control that aids in regulating room temperature with in-built I FEEL automation. Our state-of-the-art photocatalytic filter and X-fan improves air quality by eliminating 99.9% of bacteria and viruses, while dually inhibiting mildew growth on its coil.  Advanced efficiency with refreshing ease, the TERRA sustains long-term savings for you and the environment.

Get in Touch with Sales

To inquire about this item get in touch at 786-621-8250 or send a message.

Categories: , , .
Advanced Features
  • Highest efficiency G10 Inverter Technology with lower power consumption, ultra-low frequency operation, low noise and precise temperature control.
  • Advanced Airflow Operation with 4-way airflow/swing; extended airflow (9K and 12K sizes); waterfall heating airflow distribution; 7 fan speeds from Turbo to Mute; Ultra quiet operation – down to 23 dB(A) Sound Pressure in Low fan speed (9K and 12K sizes).
  • Easy Comfort Control Operation with I-FEEL standard function, Three Comfortable Sleep Modes and Energy Saving Function.
  • Gold Fin Condenser Coil protects against the corrosive effects of outside air, extending the operating life of your system.
  • Photocatalytic Filter improves indoor air quality by effectively eliminating 99.9% of bacteria and viruses, reducing contaminants and oxidizing odors.
  • Intelligent Defrost reduces energy loss and defrost time by only defrosting when needed

Additional Features

  • Low Ambient Cooling to 5˚F
  • Optional Wired thermostat
  • Low voltage start-up
  • Intelligent Pre-heating
  • X-fan function for Auto Clean
  • Dry Anti-mildew design
  • LED display
  • Automatic Operation
  • Self-diagnosis
  • Memory Function
  • 24-hour Timer
  • Control lock
  • Fan Delay function

Inverter logo AHRI logo  ETL logo   Energy star logo   R410 logo

Model TERRA09HP230V1ASTERRA12HP230V1ASTERRA18HP230V1ASTERRA24HP230V1AS
System TypeHeat PumpHeat PumpHeat PumpHeat Pump
Power Supply208-230V / 60Hz208-230V / 60Hz208-230V / 60Hz208-230V / 60Hz
Rated Current CoolingAmps5.767.48.5
Rated Current HeatingAmps77.57.810.3
Cooling Capacity (Min-Max)Btu/h9,000 (3,500-9,600)12,000 (3,100-13,000)18,000 (4,600-22,180)24,000 (6,826-29,352)
Heating Capacity (Min-Max)Btu/h9800 (2,200-11,000)13,000 (2,400-14,000)19,000 (3,400-24,900)25,000 (7,509-37,543)
SEER/EER27 / 14.525 / 12.821 / 12.021 / 12.0
HSPF/COP9.0/3.89.0/3.59.8/3.59.2/3.3
Indoor UnitTERRA09HP230V1AHTERRA12HP230V1AHTERRA18HP230V1AHTERRA24HP230V1AH
Air Flow CFM418/300/282/247/218/182/118453/312/288/259/221/182/118588/512/465/418/371/330/282706/647/589/530/471/412/353
Sound Pressure Leveldb (A)42/38/36/34/30/26/2344/38/36/34/30/26/2451/48/45/43/39/36/3352/49/47/45/43/41/38
Unit Size(WxHxD)Inches34 1/8 x 11 1/2 x 8 3/1634 1/8 x 11 1/2 x 8 3/1640 1/8 x 12 1/2 x 9 1/846 3/8 x 12 13/16 x 10 3/8
Package Size(WxHxD)Inches37 3/16 x 14 7/8 x 11 11/1637 3/16 x 14 7/8 x 11 11/1643 3/16 x 15 5/8 x 13 3/849 3/16 x 16 3/16 x 14
Net/ Gross Weightlbs24 / 3124 / 3131 / 4240 / 53
Outdoor UnitTERRA09HP230V1AOTERRA12HP230V1AOTERRA18HP230V1AOTERRA24HP230V1AO
Compressor TypeDC Inverter-drivenDC Inverter-drivenDC Inverter-drivenDC Inverter-driven
Sound Pressure Leveldb(A)49495656
Unit Dimension (WxHxD)Inches35 3/8 x 23 1/2 x 14 7/835 3/8 x 23 1/2 x 14 7/837 5/8 x 27 5/8 x 15 5/838 5/8 x 31 1/8 x 16 13/16
Package Dimension (WxHxD)Inches37 5/16 x 25 3/8 x 16 1/237 5/16 x 25 3/8 x 16 1/240 1/2 x 29 1/2 x 1842 5/8 x 33 11/16 x 19 3/16
Net / Gross Weightlb86 / 9087 / 92110 / 121153 / 164
Refrigerant / Chargeoz.R410A / 45.9R410A / 45.9R410A / 56.4R410A / 77.6
Line Set Size (Liquid - Suction)Inches1/4" - 1/2"1/4" - 1/2"1/4" - 5/8"1/4" - 5/8"
Pre-ChargeFeet25252525
Max.Line RunFeet50668298
Max.ElevationFeet33333333
MCAAmps10101520
MOCPAmps15152030
Wire Size / # WiresAWG14 / 4AWG14 / 4AWG14 / 4AWG14 / 4
