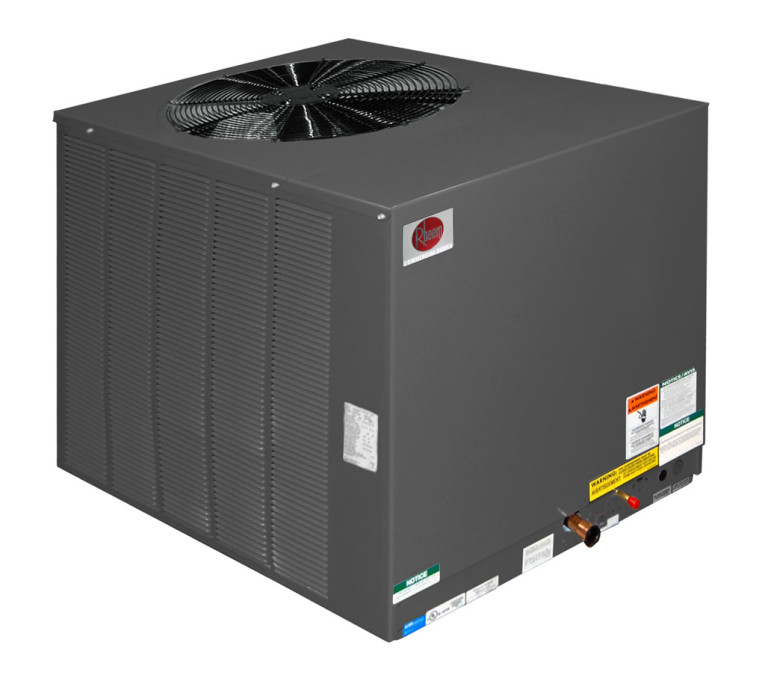

RAWL (6.5 & 7.5 Ton) Series

  • Commercial High-Efficiency Condensing Units
  • 6.5 & 7.5 TON MODEL [22.86 & 26.38 kW]



Get in Touch with Sales

To inquire about this item get in touch at 786-621-8250 or send a message.

The 6.5 and 7.5 ton Rheem RAWL, Split System Air Conditioning units feature earth-friendly R-410A refrigerant. The Rheem Commercial Series Split System Air Conditioners combine money-saving efficiency, whisper-quiet operation, environmental-friendliness and superb reliability to bring you peace of mind – year after year. Nothing performs more reliably than a Rheem Split System Air Conditioner.  It’s that simple. This platform provides you with a full line of capacities that are each AHRI-certified. The design is certified by CSA International.

Additional Benefits

The Scroll® Compressor All of our residential/commercial split system units, regardless of efficiency level, feature the Scroll Compressor. These scroll compressors use a more advanced technology than traditional reciprocating compressors. There is a separate compressor compartment for easy service access. External wraparound Crankcase heater helps prevent refrigerant migration to the compressor oil during long off periods.  They have fewer moving parts; they are quieter, more efficient, longer lasting.

Durable Cabinet Our cabinets have a powder painted finish that protects them from the harshest weather extremes. Galvanized steel with powder coat paint finish. The powder coat paint finish is high gloss, durable and capable of withstanding a 1000-HR salt spray test per ASTM B117. The unit is of the frame and panel type of construction which allows all access panels to be opened or removed without affecting the structural strength of the unit. Fastening screws are also of the 1000-HR type. Stamped louver panels offer 100% protection for the condenser coil.

REFRIGERANT CONNECTIONS All field sweat joints are made external of the unit and are located close to the ground for a neat looking installation.

Motor/Fan Motor Mount Our mount helps protect the fan motor from the elements for longer life. Its design dependability helps reduce vibration and noise. Condenser fan motor(s) are mounted on removable top panel(s) which bring the motor(s) out to you and expose entire condenser coil for cleaning. Condenser fan motors are direct drive, single-phase permanently lubricated “PSC” motors with inherent overload protection.

Matched Blower/Evaporator Coil Unit The blower is responsible for the flow of air into your duct work. It has been designed to match the MultiFlex® evaporator coil and other system components for maximum efficiency and quiet operation. In addition, the coil features rifled copper tubing and enhanced fins for improved efficiency. Single slab, single pass designed evaporator coil facilitates easy cleaning for maintained high efficiencies.

Service Access Control box with separation between line and control voltages, as well as compressor and other refrigerant controls are accessible through removable panel without affecting normal operation of unit.

Other Benefits LOW AMBIENT CONTROL-A pressure sensitive fan cycling control allows operation of units down to 0°F [-18°C].

HIGH PRESSURE CONTROL-Manual reset control deactivates system if abnormally high pressure occurs.

LOW PRESSURE CONTROL—Automatic reset control deactivates system if abnormally low pressure or refrigerant loss occurs.

SERVICE VALVES—Standard on liquid and suction lines.

TRANSFORMER—50VA step-down type, from Line to 24 volts.

CONTRACTOR—The contractor is an electrical switch which operates the compressor and condenser fans. Its 24 volt coil is activated through the High Pressure Control and Low Pressure Control on a call for cooling.

EQUIPMENT GROUND—Lug for field connection of ground wire.

TESTING—All units are run tested at the factory prior to shipment. Units are shipped with a holding charge of nitrogen.

CONTROL BOX—The control box is located in the top corner of the cabinet providing for easy access through a service panel.

COMPRESSOR TIME DELAY CONTROL—Compressor will remain off for five minutes after power or thermostat interruption, allowing system pressures to equalize. (Model No. RXMD-B01)

FILTER/DRIER—A liquid line filter drier is shipped with each unit for field installation.
