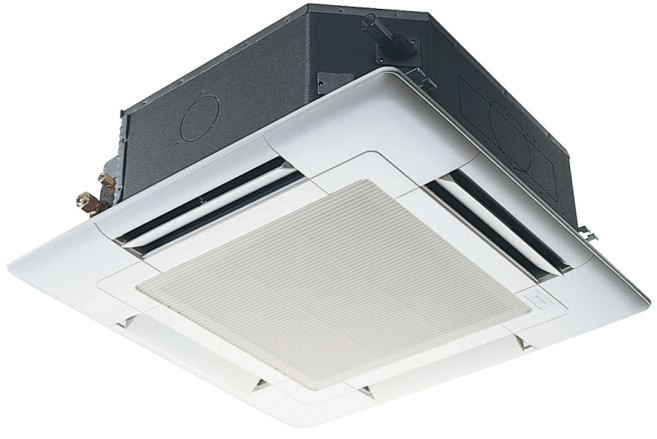

PLFY – Ceiling-recessed Cassette (Four-Way)

The PLFY-Series four-way ceiling-recessed cassette provides exceptional performance and excellent air coverage. Two styles are available – the PLFY-P-NBMU and the PLFY-P-NCMU.



PLFY-NBMU Features:

• 33 x 33″ cabinet size

• Capacity range of 12,000 to 36,000 Btu/h

• Sound levels as low as 27 dB(A)

• Ventilation air connection

• High-efficiency filter option

• Branch ducting capability

• Auto-fan feature to adjust fan speed based on temperature differentials between space and set point

• Integrated condensate lift mechanism to provide up to 33 1/2″ of lift



PLFY-NCMU Features:

• 24 x 24″ cabinet size to fit in standard T-grid ceiling

• Capacity range of 8,000 to 15,000 Btu/h

• Sound levels as low as 29 dB(A)

• Ventilation air connection

• Auto-fan feature to adjust fan speed based on temperature differentials between space and set point

• Integrated condensate lift mechanism to provide up to 19 11/16″ of lift
