NEO BLUE High efficiency Inverter

NEO LOGO Hi Efficiency Inverter Technology

With NEO at your side, you can fight the heat and still be kind to the environment. Energy efficient yet powerful, the NEO is a high-energy inverter ductless split system that excels at single zone applications.  Achieving up to 22 SEER with an Energy Star rating, innovative engineering ensures the NEO always wins in eco-efficiency. Don’t be fooled by its compact design. Despite its cooling power, the NEO’s quiet operation includes an intelligent Sleep function that adjusts to your sleep pattern in order to maximize comfort and suppress your energy costs. Armed with a gold fin condensor, the NEO is self-protected from external corrosion, efficiently extending its own operating life.  With inbuilt fan delay functionality, air-flow direction control, and a cutting edge defrost feature, the NEO effectively reduces energy loss – so you only use what you need, when and where you need it

Get in Touch with Sales

To inquire about this item get in touch at 786-621-8250 or send a message.

Categories: , , .
KEY FEATURES INCLUDE

Advanced Features

  • High efficiency Inverter technology (Up to 22 SEER)
  • Gold Fin condenser protects against the corrosive effects of outside air, extending the operating life of your system.
  • Sleep function allows you to design a cycle that follows your sleeping pattern to maximize comfort and reduce utility bills.
  • Intelligent defrost reduces energy loss and defrost time by only defrosting when needed.

Additional Features

  • Low Ambient Cooling to 5 deg F (230V systems)
  • Intelligent Pre-heating
  • Auto Swing (Vertical)
  • Multiple fan speeds
  • Memory function
  • Compact and quiet design
  • Fan Delay
  • Dry Mode
  • Auto clean
  • Timer
  • Self diagnosis function
  • Control lock
  • LED Display

Inverter logo  AHRI logo ETL logo  Energy star logo  R410 logo

ModelUnitNEO09AC230V1AS-BNEO12AC230V1AS-BNEO18AC230V1AS-BNEO24AC230V1AS-BNEO36AC230V1AS-B
System TypeCooling OnlyCooling OnlyCooling OnlyCooling OnlyCooling Only
Power Supply208-230V / 60Hz208-230V / 60Hz208-230V / 60Hz208-230V / 60Hz208-230V / 60Hz
Rated Current CoolingAmps2.84.56.77.915.9
Cooling Capacity (Min-Max)Btu/h9,000 (3,500-9,600)12,000 (3,100-13,000)18,000 (5970-22,350)21,400 (9.600-25,000)33,600 (7,400-36,000)
SEER/EER22 / 14.220 / 12.018 / 12.018 / 12.016 / 9.2
Indoor UnitNEO09AC230V1AH-BNEO12AC230V1AH-BNEO18AC230V1AH-BNEO24AC230V1AH-BNEO36AC230V1AH-B
Air Flow T/H/M/LCFM306/277/253/218335/277/253/218500/459/383/324588/471/412/353824/706/677
Sound Pressure Level T/H/M/Ldb (A)42/38/35/3244/39/36/3349/44/40/3553/45/41/3759/56/53
Unit Size(WxHxD)Inches33 5/16 x 10 13/16 x 7 1/833 5/16 x 10 13/16 x 7 1/837 x 11 11/16 x 7 7/839 11/16 x 12 3/8 x 8 5/853 1/8 x 12 13/16 x 10
Package Size(WxHxD)Inches36 1/8 x 14 5/8 x 10 3/1636 1/8 x 14 5/8 x 10 3/1639 13/16 x 15 x 11 3/1642 3/8 x 15 11/16 x 12 7/856 11/16 x 16 5/8 x 14 1/8
Net/ Gross WeightPounds24 / 3124 / 3129 / 3835 / 4644 / 60

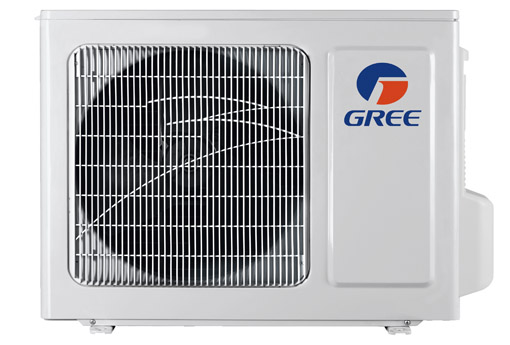

Outdoor UnitNEO09AC230V1AO-BNEO12AC230V1AO-BNEO18AC230V1AO-BNEO24AC230V1AO-BNEO36AC230V1AO-B
Compressor TypeDC Inverter-Driven Twin RotaryDC Inverter-Driven Twin RotaryDC Inverter-Driven Twin RotaryDC Inverter-Driven Twin RotaryDC Inverter-Driven Twin Rotary
Sound Pressure Leveldb(A)5052565865
Unit Size (WxHxD)Inches33 3/8 x 21 5/16 x 12 5/833 3/8 x 21 5/16 x 12 5/837 5/8 x 27 5/8 x 15 5/838 5/8 x 31 1/8 x 16 13/1638 5/8 x 31 1/8 x 16 13/16
Package Size (WxHxD)Inches34 11/16 x 23 3/8 x 14 5/1634 11/16 x 23 3/8 x 14 5/1640 1/2 x 29 x 18 1/242 5/8 x 33 11/16 x 19 3/1642 5/8 x 33 11/16 x 19 3/16
Net / Gross WeightPounds79 / 9088 / 9799 / 110119 / 132161 / 170
Refrigerant / Chargeoz.R410A / 45.9R410A / 45.9R410A / 49.4R410A / 56.5R410A / 84.7
Line Set Size, Liquid - SuctionInches1/4" - 3/8"1/4" - 3/8"1/4" - 1/2"1/4" - 5/8"1/4" - 5/8"
Pre-ChargeFeet2525252525
Max.Line RunFeet50668282100
Max.ElevationFeet3333333333
MCAAmps1010131624
MOCPAmps1515202535
Wire Size / # WiresAWG14 / 4AWG14 / 4AWG14 / 4AWG14 / 4AWG14 / 4
