| Model Number | KLÖ09COJISD | KLÖ12COJISD | KLÖ18COJISD | KLÖ24COJISD | |
|---|---|---|---|---|---|
| System Type | Cooling Only | Cooling Only | Cooling Only | Cooling Only | |
| Power Supply | V/Hz/Ph | 220-230V- 60Hz, 1Ph | 220-230V- 60Hz, 1Ph | 220-230V- 60Hz, 1Ph | 220-230V- 60Hz, 1Ph |
| Rated Current (A) Cooling | Amps | 4.9 | 5.3 | 9.3 | 12 |
| Cooling Capacity | Btu/h | 9000 | 12000 | 18000 | 24000 |
| Efficiency | Fixed Speed - Standard Efficiency | Fixed Speed - Standard Efficiency | Fixed Speed - Standard Efficiency | Fixed Speed - Standard Efficiency | |
| Loading Capacity | 20'/40’/40’HC | 135/275/312 | 110/236/264 | 96/200/224 | 60/126/140 |

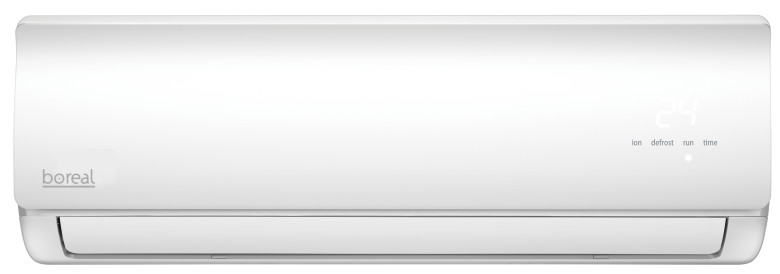

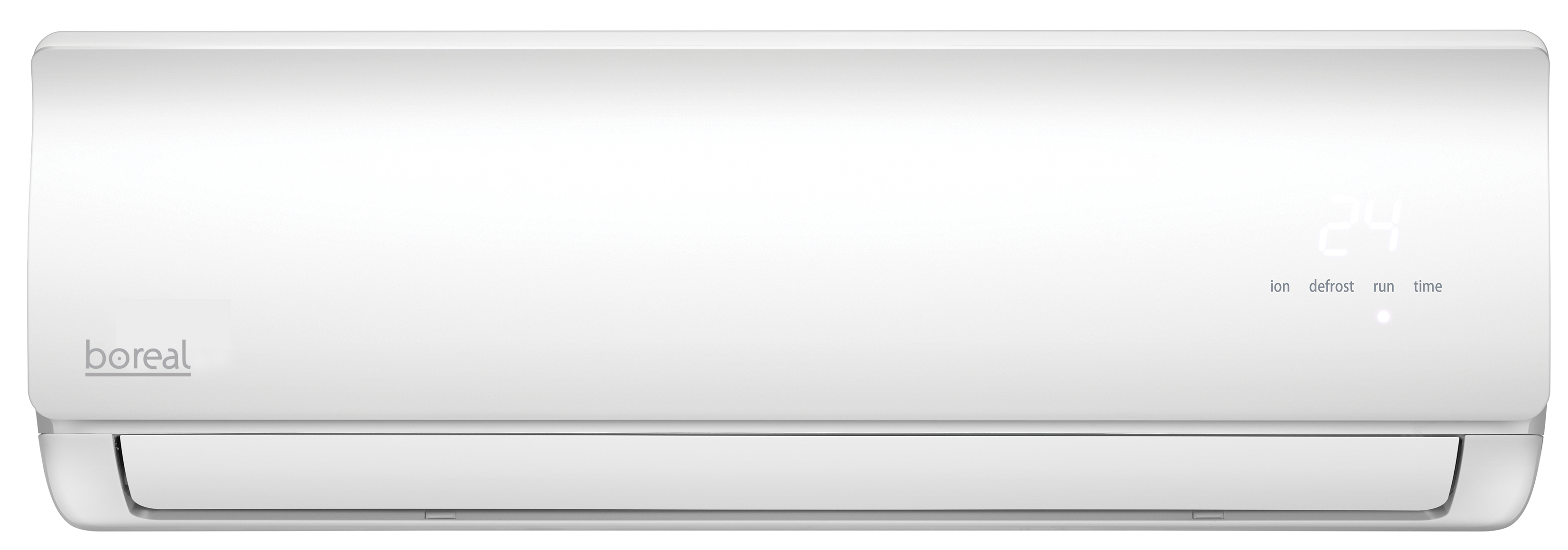

| Indoor Unit | KLÖ09COJ1IC | KLÖ12COJ1IC | KLÖ18COJ1IC | KLÖ24COJ1IC | |
| Air Flow (High/Med/Low) | CFM | 470/370/310 | 441/377/330 | 441/377/330 | 647/582/477 |
| Sound Pressure Level (High/Med/Low) | dB (A) | 41/34/31 | 43/38/34 | 44/40/36 | 49/45/41 |
| Unit Dimension (WxDxH) | inches | 28 1/4 x 7.1/2 x 9 3/4 | 31 1/2 x 7 1/2 x 10 3/4 | 37 x 8 x 10 3/4 | 41 1/4x9 1/4x12 1/2 |
| Package Dimension (WxDxH) | inches | 30 1/2 x 10 1/4 x 12 3/4 | 34 x 10 1/2 x 13 3/4 | 40 x 10 1/2 x 13 3/4 | 44 1/2x12 1/2x15 1/2 |
| Net / Gross Weight | lb | 14/19 | 16/21 | 22/28 | 27/33 |
| Outdoor Unit | KLÖ09COJ1OC | KLÖ12COJ1OC | KLÖ18COJ1OC | KLÖ24COJ1OC | |
| Compressor Type | Rotary Compressor | Rotary Compressor | Rotary Compressor | Rotary Compressor | |
| Sound Pressure Level | db (A) | 53 | 55 | 56 | 57 |
| Unit Dimension (WxDxH) | inches | 26 3/4 x 11 1/4 x 17 | 27 1/2x10 1/2x21 1/2 | 30 1/4x11 3/4x21 3/4 | 33 1/4x12 3/4x27 1/2 |
| Package Dimension (WxDxH) | inches | 31 1/4 x 14 1/2 x 20 1/2 | 32x13 3/4 x 24 1/4 | 35 1/2x14x23 3/4 | 38 3/4x17 1/4x30 |
| Net/Gross Weight | lb | 43/46 | 53/57 | 67/71 | 82/88 |
| Refrigerant / Charge | oz. | R410A/14.1 | R410A/16.9 | R410A/19.8 | R410A/32.1 |
| Aplication Area | ft² | 118 - 183 | 161 - 226 | 247 - 365 | 301 - 441 |
| Line Set Size ( Gas side - Liquid side ) | inches | 3/8'' 1/4" | 3/8'' 1/4" | 1/2'' 1/4" | 5/8'' 3/8" |
| Pre-Charge (Ft.) | Feet | 16.5 | 16.5 | 16.5 | 16.5 |
| Max. Line Run (Ft.) | Feet | 65 | 65 | 65 | 82 |
| Max. Elevation (Ft.) | Feet | 23 | 23 | 23 | 35 |
| MCA | Amps | 6.5 | 7.5 | 11.5 | 16.0 |
| MOCP | Amps | 10 | 10 | 15 | 25 |
| Wire Size / # Wires | AWG 18/3 | AWG 16/3 | AWG 16/3 | AWG 14/3 |
