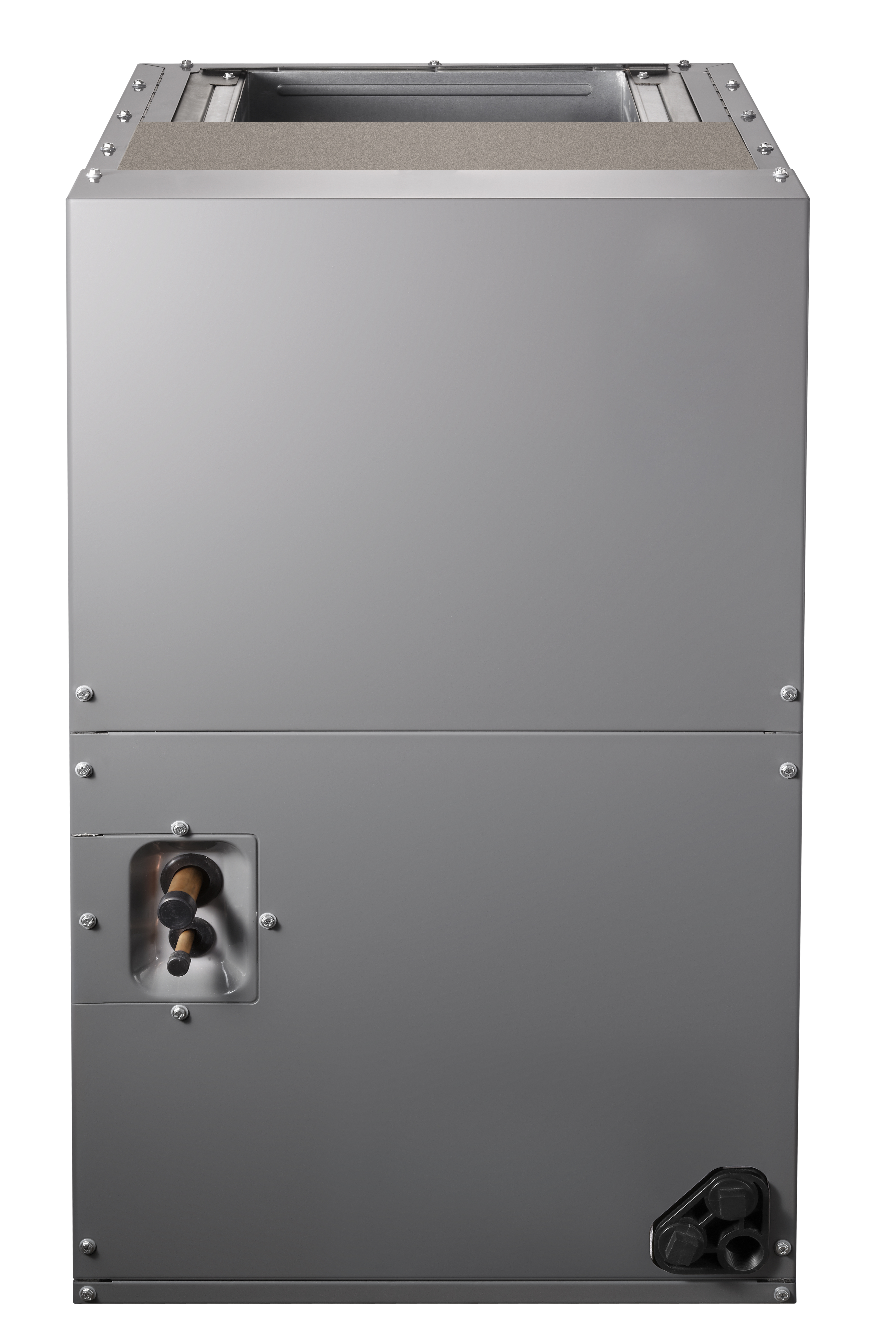

Air Handler Unit
Introducing the new Boreal Air Conditioner: BUMA Series
- High strength & high reliability cabinet
- Incredible cold-bridge free structure
- Low air leakage
- High performance heat exchanger
- Stable air supply fan assembly
- High air quality
- Attractive outlook
- Wide usage: school, factory, hotel, hospital, office, etc.
| Air Handler Unit | ||||
|---|---|---|---|---|
| System Performance | Boreal | BUMA36COJ1SAHCSE | BUMA48COJ1SAHCSE | |
| System Type | Cooling Only | |||
| Power Supply | V/Ph/Hz | 220/1/60 | 220/1/60 | |
| Cooling Capacity | Btu/h | 36000 | 48000 | |
| Efficiency | EER | 2.66 | 2.53 | |
| Indoor Units | BUMA36COJ1HAHCSE | BUMA48COJ1HAHCSE | ||
| Indoor Unit | Loading Capacity | 20’/ 40’ /40’HC | 88/184/275 | 80/164/164 |
| Air Flow | CFM | 906 | 1284 | |
| Sound Pressure Level | dB (A) | 55 | 54 | |
| Unit Dimension (WxDxH) (Body) | inches | 18 1/10 x 20 ½ x 30 ½ | 19 7/10 x 21 7/10 x 38 1/5 | |
| Package Dimension (WxDxH) (Body) | inches | 20 ½ x 22 1/5 x 32 9/10 | 2 1/10 x 23 2/5 x 40 3/5 | |
| Net / Gross Weight (Body) | lb | 86 / 93 | 106 / 115 | |
| Line Set Size (Liquid - Suction) | inches | 3/8" / 3/4" | 3/8" / 3/4" | |
| Room temperature (Cooling) | ℉ / °C | 62 - 90 / 17-32 | 62 - 90 / 17-32 | |
